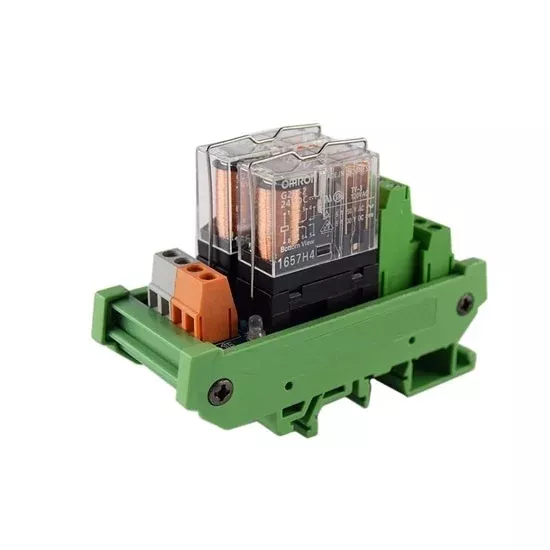

Cheap 24V relay moduel, adopts high-current relay (1NO+1NC or 2NO+2NC), available with 2 channel / 4 channel / 6 channel / 8 channel to 32 channel, LED indicator for working status, standard DIN rail mounting, widely used for all MCU control, industrial automation, PLC control, smart home control.
Specification
| Model | ATO-RM-24 | |
| Number of Channels (Optional) | 2, 4, 6, 8, 10, 12, 16, 20, 24, 32 channel | |
| Input Signal | Compatible with NPN (input 0v signal is valid), and PNP (input 24V signal is valid) | |
| Input Drive Current | >30mA | |
| Supply Voltage (Coil Voltage) | 24V DC | |
| Relay Contact Form (Optional) | 1NO+1NC | 2NO+2NC |
| Relay Max. Load Volatge | Resistive load: 10A 250VAC 12A 30VDCInductive load: 7.5A 250VAC 5A 30VDC | Resistive load: 5A 250VAC 5A 30VDCInductive load: 2A 250VAC 3A 30VDC |
| Indicator Light | When Input “COM” is connected to 0V and “X” to 24V, the LED indicator is red. (When “COM” is connected to 24V, LED light is blue.) | |
| Installation | Standard rail mounting (Can be mounted on NS35/7.5 or NS32 guides) | |
| Working Temperature | -20℃ ~ +70℃, non-condensing | |
| Working Humidity | 5% ~ 85%RH | |
| Storage Temperature | -40℃ ~ +150℃ | |
| Size (L*W*H) | 2 channel: 87*40*65mm4 channel: 87*70*65mm6 channel: 107*87*65mm8 channel: 134*87*65mm10 channel: 170*87*65mm12 channel: 200*87*65mm16 channel: 264*87*65mm20 channel: 330*87*65mm24 channel: 393*87*65mm32 channel: 543*87*65mm | |
| Weight | Approx. 0.5kg ~ 1kg |
Details
Wiring Diagram
- Relay module 1NO+1NC
- Relay module 2NO+2NC
Tips: What is the role of the relay module?
The relay module integrates and serializes the single low-power relays in the electrical control cabinet, reducing the intermediate wiring links and improving the performance of the product. The relay module conforms to the development trend of miniaturization and integration, and is a replacement product of the original single relay. What’s more, the relay module can be designed according to different CNC systems, which can better meet the needs of modern CNC machine tools.
In the past, when we made an automated electrical control cabinet, the PLC control load will be added with a small intermediate relay. Now that industrial automation has developed toward integration, a relay module has been developed. PLC can directly control the coil of the relay module, and then the contact of the relay module can control the load. The advantage is that the relay module is small, accounting for only 1/2 of the volume of the small intermediate relay, and the contact current is still larger than that of the small relay, generally 10A, 12A, 16A, 30A. With varistor, when the relay is disconnected, the generated sparks play an arc extinguishing role, improving the life of the relay. In addition, it is very convenient to replace the damaged relay on the relay module. Like the small intermediate relay, the relay module is also equipped with a base, which can be plugged and replaced directly, and it is convenient to maintain. The relay module is also very convenient to connect, and the input and output are the same as the PLC It is separated, that is, the top is the input, and the bottom is the output.
