Mark E. Industries Quick-Pitch Floor Drainage Kit
This permanently installed screed guide is for shower floors, tile tubs, and fountains. It guarantees a proper slope for drainage with no error in measurement or the need for a laser or level. Install your dry-pack mortar with ease using this ‘mud pan’ template. Use the center ring placed over the drain with the tapered float sticks to achieve a perfect 1/4″ fall per 12″ run.
Features
- Standard center ring for round drain covers
- Square drain covers require the universal center ring. We recommend purchasing the extra float sticks with the universal center ring for square drain cover applications
- Standard Kit (QPK-101) – Fits 3 ft x 5 ft showers
- Extra Float Sticks (XFS-101.2) – Contains 4 sticks- These are necessary for larger areas for screeding purposes. You want your float sticks to be a maximum of 2-1/2 ft from each other at the outer ends. These extras are generally needed for use in custom shower areas with either curved or more than four walls
- Extended Float Sticks (EFS-103)These are for areas where the outer walls are greater than 3 feet from the drain. They allow you to do up to a 12 ft x 12 ft shower room!
- With Quick Pitch’s three kits, anyone can float in any size or shape shower and get a perfect 1/4″ slope every time!

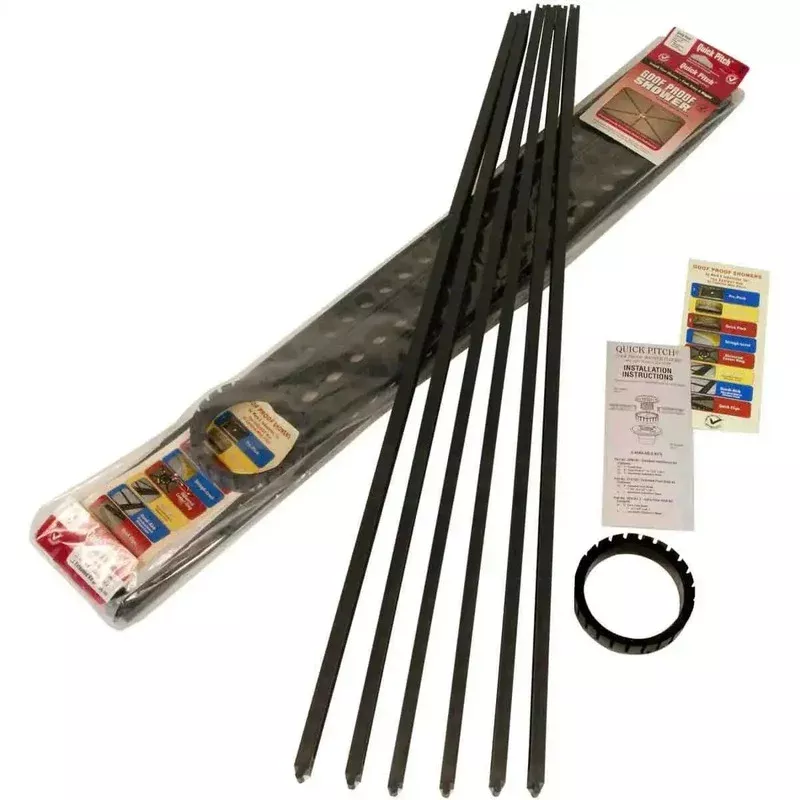

- Standard Kit (QPK-101) includes 6 Float Sticks, 1 to 1 3/4 taper x 36″ long and 1 center ring
- Extra Float Sticks (XFS-101.2) includes 4 Float Sticks, 1 to 1 3/4 taper x 36″ long
- Extended Float Sticks (EFS-103) includes 4 Float Sticks, 1-3/4″ to 2-1/2″ taper x 36″ long
Quick Clips
- The Quick Clips are designed to be used with the Schluter Kerdi Drain, Noble TS, and Quick Drain Systems
- These clips hold the Quick Pitch Standard and Extended Float sticks in place for the installation on a wood or concrete sub-floor
- The package contains 12 clips, 24 screws, and 12 double-sided tape pieces
