Product Overview

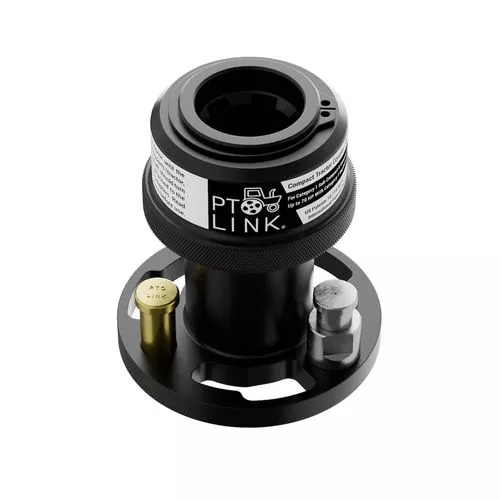

The PTO Link® Compact System is designed for ONLY category 1 tractors (compact or subcompact, with a max 70 HP/engine net rating), used in combination with category 1 implements ONLY. PTO Link® is the original, universal PTO quick-connect system consisting of two interconnecting steel couplers. Its patented Open-Plate™ design replaces the traditional spline-driveline connection with a visible interface that’s both easy to see and reach. Now you can quickly and safely connect / disconnect implements at the tractor’s PTO in just seconds!.
- Mates with 127014 to make the unit complete
- Use in combination with Category 1 implements only
- PTO Link®is the original, universal PTO quick-connect system consisting of two interconnecting steel couplers
- Its patented Open-Plate™ design replaces the traditional spline-driveline connection with a visible interface that’s both easy to see and reach
- Can quickly and safely connect/disconnect implements at the tractors PTO in seconds
- Works with rear 6 spline 540 RPM PTO for tractors up to 70HP
- Simple one-step installation and no special tools or hardware needed
- AISI 4140 hardened alloy steel with QPQ finish
- Safety Plunger Pin included with every female plate, extras can be purchased by ordering 127015 – Compact Plunger Pin
- The PTO Link® System adds approximately 5 inches to the overall length of the implement driveline when fully installed..
- Dimensions 3.75 inches width X 3.75 inches in height
- Known tractor models that fit this description include:Kubota BX*, B & LX Series, Kio CS & DK Series (Cat 1), Yanmar SA Series, John Deere 2520 (2005-2011), New Holland Workmaster 25S, Cub Cadet 6284D, Bad Boy 3026, LS MT122, MT125 & MT225, Mahindra 1526, 1626 & 2126, Massey Ferguson 25, 1010, 1020, 1030 & 1035.
- Note: Most other tractors (20 HP to 100 HP) are compatible with our PTO Link®SD model, so IF your tractor model is NOT listed above and your tractor spline length is greater than 3″, the SD or HD models are your alternate options.
