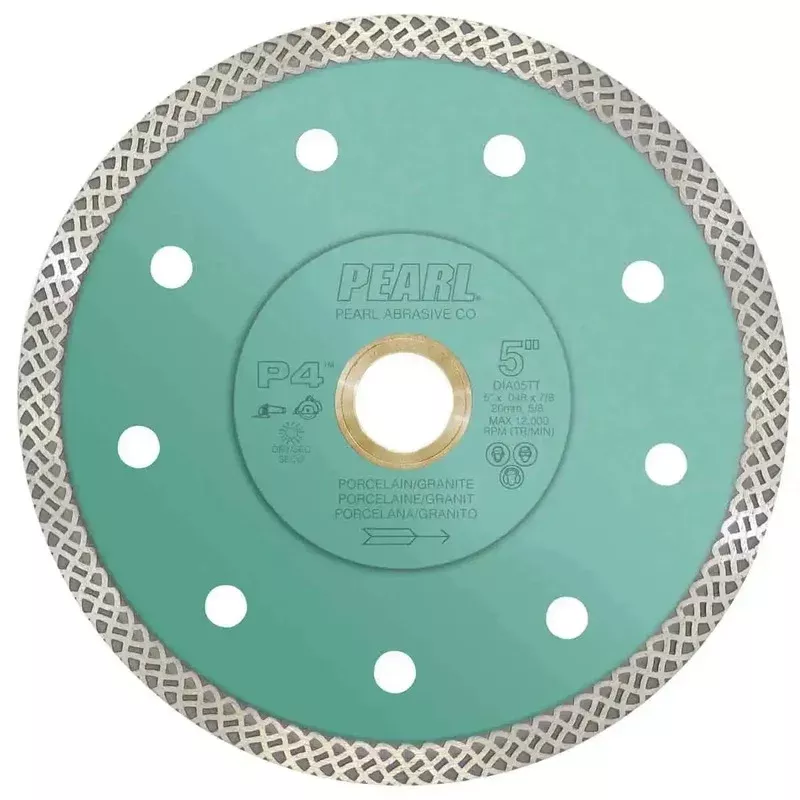

Pearl P4 Turbo Mesh Blades for Porcelain and Granite
The turbo-mesh rim virtually eliminates heat caused by friction, allowing for clean, chip-free cuts through porcelain, ceramic, and stone.
Features
- Thin Turbo-Mesh rim and core for fast cutting and minimal chipping
- It is ideal for cutting extra hard ceramics, porcelain, and other hard/dense materials
- Extra long life
- These blades are designed for wet or dry cutting
Additional Information
- Don’t drop and jam in the cut
- Don’t leave it on the grinder when not in use
- Don’t grind and twist in the cut or side stress
- Inspect blades before each use for any damage
- Always leave the guard on a grinder
| Pearl P4 Turbo Mesh Diamond Blade Specifications | ||||||
| Model | DIA04TT | DIA45TT | DIA05TT | DIA06TT | DIA07TT | DIA10TT |
| Blade Size | 4″ | 4-1/2″ | 5″ | 6″ | 7″ | 10″ |
| Rim Height | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm |
| Arbor | 20 mm – 5/8″ | 5/8″ | 5/8″ | 5/8″ | 5/8″ | 5/8″ |
| RPM | 15,200 | 13,500 | 12,200 | 8,730 | 7,640 | 6,1150 |
| Kerf | 0.050″ | 0.050″ | 0.050″ | 0.050″ | 0.050″ | 0.050″ |
| Material | Performance |
| Ceramic | Excellent |
| Porcelain | Excellent |
| Marble | Not Recommended |
| Granite | Good |
| Hard Granite | Good |
| Glass | Not Recommended |
