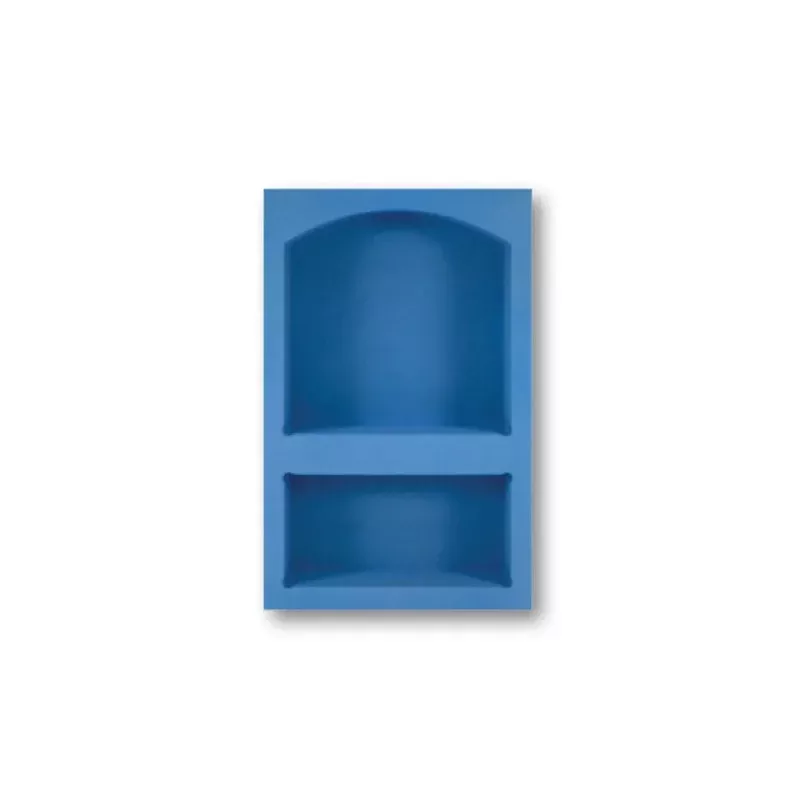

Noble Shower Niches
These shower niches are lightweight, durable, and ready to tile. They are also much faster to install than traditional framing methods.
Features
- A waterproof, tile-ready shower niche made from extruded polystyrene with an acrylic polymer finish
- Install in minutes
- Waterproof and ready to tile
- Sized for better fit, niche corners are exaggerated to simplify the installation of square tile
- Durable and lightweight
- Niches mount flush in 2″x4″ stud wall construction with 1/2″ backer board
Installing Your Niche
- Cut and remove the backer board panel
- Use a 100% silicone-based sealant to adhere the niche to the back wall and studs
- seal joints between the niche and backer board using silicone sealant. Silicone should not be smeared over the face of the niche or backer board
- Tape joints with backer board tape or thin set NobleSeal TS to walls overlapping joints
- Install tile using latex and modify thin-set
Choose from different sizes
All Outside Dimensions are in inches with a +/-1/8 tolerance.
| Model | Outer Dimensions | Niche Dimensions(unfinished) |
| 301 square niche | 14-1/4 x 4 x 14-1/4 inch | 12 x 3-1/2 x 12 inch |
| 303 arch combo niche | 14-1/4 x 4 x 22-1/2 inch | 12 x 10(12 at center) x 3-1/2 &12 x 6 x 3-1/2 inch |
| 304 wide combo niche | 14-1/4 x 4 x 22-1/2 inch | 12 x 3-1/2 x 12 &12 x 3-1/2 x 6 inch |
| 305 narrow combo niche | 8-1/4 x 4 x 22-1/2 inch | 6 x 3-1/2 x 12 &6 x 3-1/2 x 6 inch |
| 314 rectangular niche | 14-1/4 x 4 x 22-1/2 inch | 12 x 3-1/2 x 20 inch |
| 2943 4 ft. custom niche(w/ 3 shelves) | 14-1/4 x 4 x 48 inch | 12 x 3-1/2 x 45-3/4 inch |
