Product Description
The way you figure out which motor you need is you measure the Width & Height of the motor.

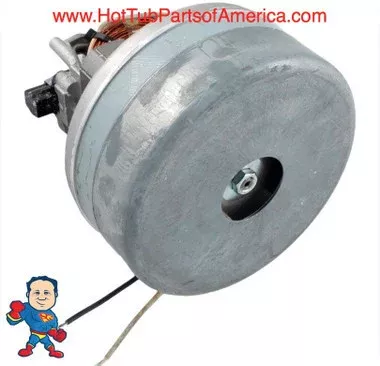

Look at the picture for examples of what to measure, the you figuire out what voltage 115V or 230V
and don’t guess at the voltage because wiring in the wrong motor could damage the motor and the board.
Last look for the Horse Power and Amperage note that usuallt the first measurements will tell you what
Horse Power and Amperage you need. Look at the chart below for motors by these variables.
| Blower Motor Horsepower | 2.0hp |
| Motor Amperage | 9.0A |
| Voltage | 115v |
| Blower Amperage | 9.0A |
| Phase | 1 Phase (1ph) |
| Blower Motor Style | Standard |
| Speed | 1 Speed (1-Spd) |
| Horsepower | 2.0hp |
| Manufacturer | Ametek |
| Item | HP | Amps | Volts | “A” Height | “B” Height |
| 35-555-1000 | 1 | 7 | 110v | 4-1/2″ | 1-3/4″ |
| 35-555-1030 | 1 | 3.5 | 220v | 4-1/2″ | 1-3/4″ |
| 35-555-1010 | 1.5 | 8 | 110v | 5-3/4″ | 2-3/4″ |
| 35-555-1040 | 1.5 | 4 | 220v | 5-3/4″ | 2-3/4″ |
| 35-555-1020 | 2 | 9 | 110v | 6″ | 2-3/4″ |
| 35-555-1050 | 2 | 6 | 220v | 6″ | 2-3/4″ |
