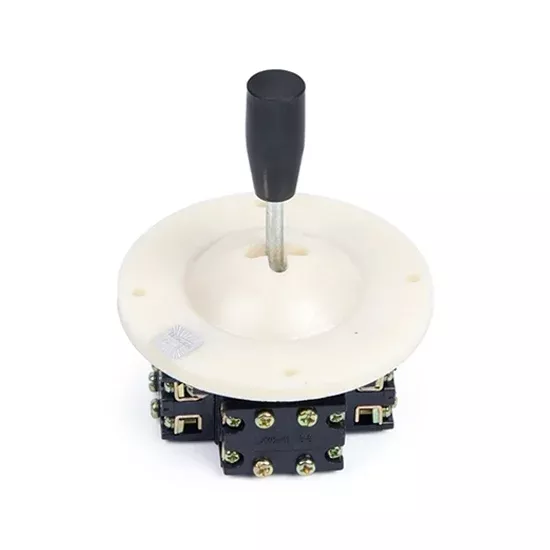

Factory price joystick switch features 10-15A opertaing current, 600V insulation voltage, which with self-cleaning function and modular structure.
Specification
| Model | ATO-HKA1-1 |
| Type | 4 way self-locking/ 4NO4NC |
| Rated voltage | 150V/ 250V/ 600V |
| Rated current | 15A/ 10A/ 4A |
| Hole diameter | 71mm |
| Operating current | 10-15A |
| Insulation voltage | 600V |
| Insulation resistance | 100MΩ |
| Operating pressure | 5-20N |
| Contact resistance | 200Ω |
| Operating temperature | 0℃-85 ℃ |
| Operation method | Emergency |
| Installation size | 22mm |
| Panel thickness | 2-5mm |
| Reset method | Manual control |
| Certificate | CCC |
| Warranty | 12 months |
Dimension (mm)
Details
Tips: Conditions of Using Joystick Switch.1. Ambient air temperature(1) The upper limit of ambient air temperature is +40℃, and the average value within 24h does not exceed +35℃.(2) The lower limit of ambient air temperature is -5℃.The ambient air temperature refers to the ambient air temperature near the main switch, and for the master switch with a shell, it refers to the ambient air temperature near the shell.2. altitudeThe altitude of the installation site does not exceed 2000m.
