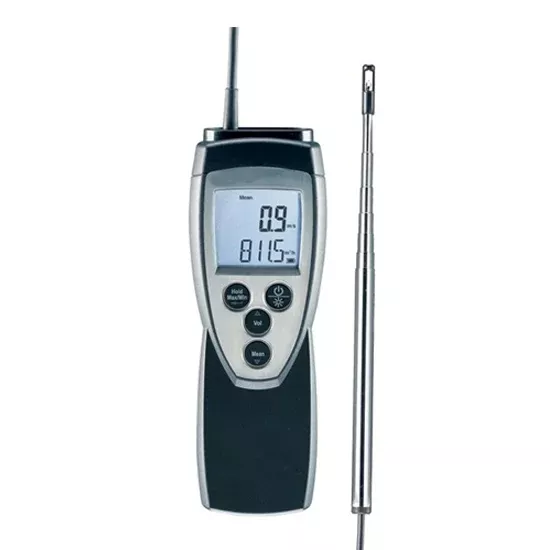

Factory price hot wire anemometer is an instrument for measuring wind speed and temperature. NTC and thermal wind speed probes for selection. The thermal anemometer with a wind speed measurement range of 0~20m/s is the best solution for HVAC wind measuring.
Hot Wire Anemometer Features
- The hot wire anemometer measures temperature, wind speed and airflow.
- It can calculate multi-point/time period averages.
- The thermal anemometer can display maximum/minimum values.
- It has a hold button to hold the reading.
- Hot wire anemometer has a display with a backlight and an automatic shutdown function.
Specifications
- Model: ATO-TESTO425
- Storage temperature: -40~+70°C
- Operating temperature: -20~+50°C
- Power supply: 9V
- Battery life: 20h
- Size: 182x64x40mm
- Material/Shell: ABS
Probe Parameters
| Probe type | NTC | Thermal wind speed probe |
| Range | -20~+70°C | 0~+20m/s |
| Accuracy | ±0.5°C (0~+60°C), ±0.7°C (Remaining range) | ± (0.03m/s +5% of the measured value) |
| Resolution | 0.1°C | 0.01m/s |
Hot Wire Anemometer Dimensions (Unit: mm)
Details
Tips: Hot wire anemometer working principle
It places an electrically heated thin metal wire (hot wire) in the airflow, the heat dissipation of the hot wire in the airflow is related to the flow rate, and the heat dissipation causes the temperature change of the hot wire and causes a change in resistance, and the flow rate signal is converted into an electrical signal. The above is the working principle of a hot wire anemometer.
