Product Overview

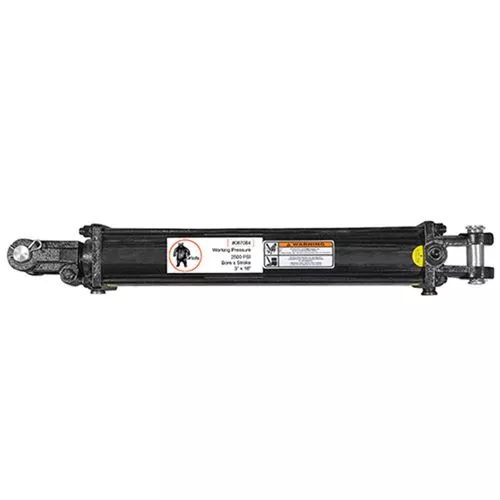

This Grizzly® hydraulic cylinder has a 3″ inch bore and a 16″ stroke with a retraced length of 26-1/4 inches and an extended length of 42-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for the tough conditions on the job or farm.
Specifications:
- Grizzly® Brand (replaces 87084)
- Bore: 3″
- Stroke: 16″
- Rod Diameter: 1-1/4″
- Retracted Length: 26-1/4″
- Extended Length: 42-1/4″
- Pin Diameter: 1″
- Port Size: 1/2″ NPTF
- PSI: 2500
- Push lbs.: 17,671
- Pull lbs.: 14,603
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC 117381
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
