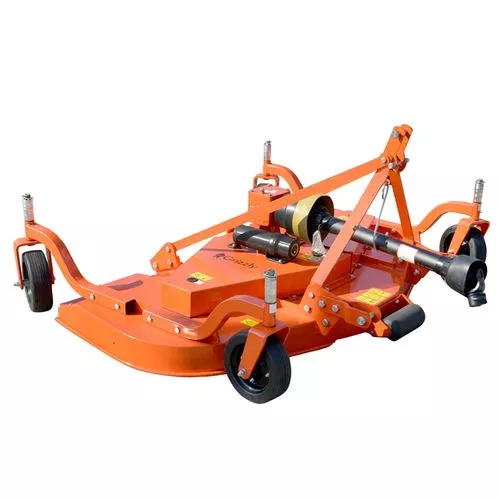

Product Overview
Specifications:
- Model Number: SGM-72
- Cutting width: 6′
- Weight: 553 lbs.
- Input RPM: 540
- Hitch: Category 1
- Tractor HP: 20-50
- Cutting height: 3/4″ – 4 1/3″
- Cutting height is adjusted with spacers on the wheel forks
- Deck Thickness: 3/16″
- Number of Blades: 3 ASC 124890
- Blade overlap: 1″
- Blade tip speed: 14,192 feet per minute
- Front anti-scalping roller standard
- Utilizes 2 belts
- Three-point hitch can be configured to be free floating or fixed
- Blade spindles are greaseable
- Wheels: 10″x3.25″ solid rubber
- For replacement belts, use qty 1 of 126960 – 76-3/4 inch Belt (Set of 2)
- For replacement PTO shafts use ASC 89798 or ASC 54718A
- For Top Hitch Support LH use ASC 133663
- For Top Hitch Support RH use ASC 133673
- For Top Hitch Arm use ASC 133667
- For Front Roller Wheel use ASC 133668
- For front Roller Bracket use ASC 133669
- For Front Roller Rod Axle use ASC 133670
- For Gearbox Assembly Gasket 18 use ASC 134320
- For Square Neck Bolt M10 x 1.5 x 30 use ASC 133671
- For Nylock Nut use ASC 133672
- For the replacement spindle assembly use ASC 124894
- For replacement wheel fork, use ASC 124901
- For models made before 4-27-24, use this breakdown
