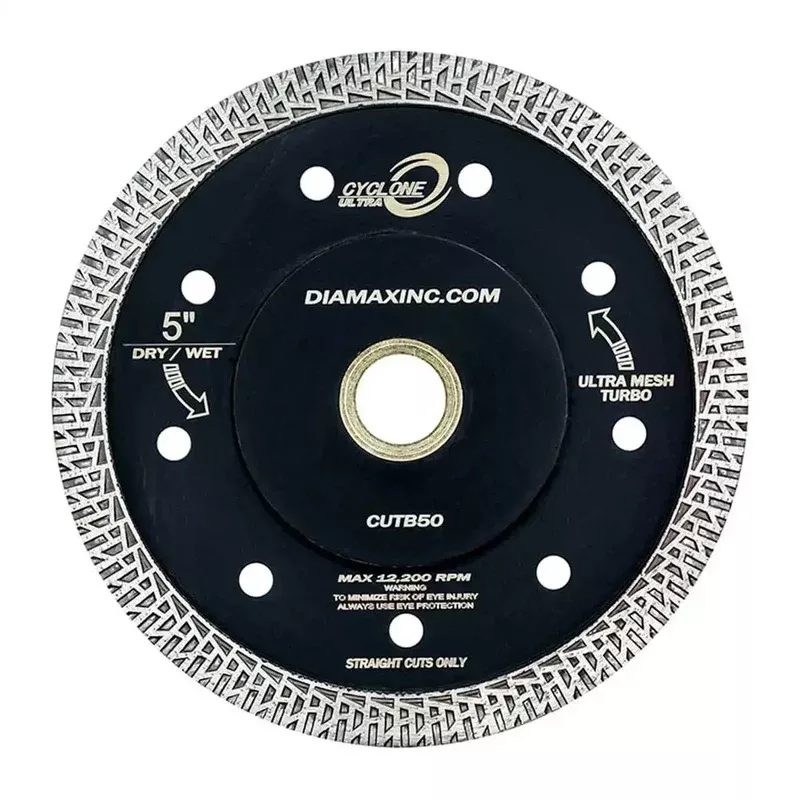

Diamax Cyclone Ultra Mesh Turbo Blade
Diamax has introduced a new addition to its already stellar Cyclone line-up. The Cyclone Ultra Mesh Turbo Blade is ideal for cutting ultra-compact and hard materials quickly while minimizing tile chipping, thanks to its unique turbo mesh design.
Features
- Ultra-thin rim assures a fast, clean-cut
- Turbo mesh design allows for optimal cooling
- Center hub reinforcement keeps the blade cutting straight
- For use with angle grinders and hand-held tile saws
- Able to cut granite, engineered stone, marble, porcelain, quartzite, and ultra-compact tiles such as Dekton or Neolith
- These blades are designed for wet or dry cutting
| Diamax Cyclone Ultra Mesh Diamond Blade Specifications | |||||
| Model | CUTB40 | CUTB45 | CUTB50 | CUTB70 | CUTB10 |
| Blade Size | 4″ | 4-1/2″ | 5″ | 7″ | 10″ |
| Rim Height | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Arbor | 5/8″7/8″20 mm | 5/8″7/8″20 mm | 5/8″7/8″20 mm | 5/8″DKO | 5/8″7/8″1″ |
| RPM | 13,200 | 13,200 | 12,200 | 8,600 | 6,100 |
| Kerf | 0.047″ | 0.047″ | 0.047″ | 0.055″ | 0.063″ |
| Material | Performance |
| Ceramic | Good |
| Porcelain | Excellent |
| Marble | Good |
| Granite | Good |
| Hard Granite | Good |
| Glass | Not Recommended |
