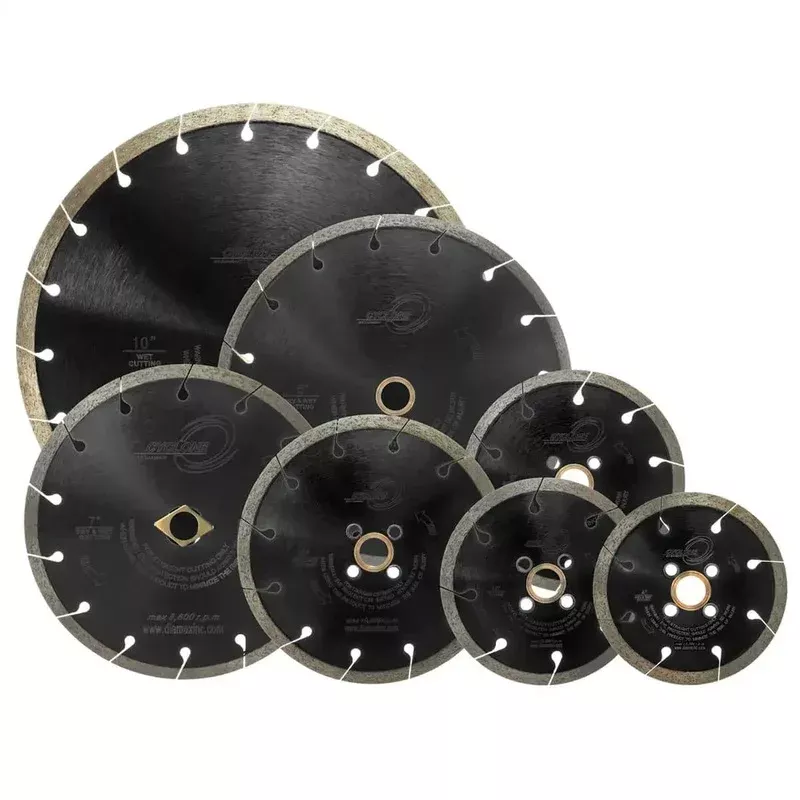

Diamax Cyclone Continuous Rim Blades
Features
- Most versatile blade that cuts granite, marble, porcelain, and ceramic tile
- It is also used widely in countertop fabrication for granite, engineered stone, and marble
- It is ideal for cleaning seams and preparing material for miter joints
- Slotted for more aggressive cutting with minimal chipping (Except 10)
- For use on angle grinders, hand saws, and tile saws
- These blades are designed for wet or dry cutting
| Diamond Blade Specifications | |||||||
| Model | CSR040 | CSR045 | CSR050 | CSR060 | CSR070 | CSR080 | CSR100 |
| Blade Size | 4″ | 4-1/2″ | 5″ | 6″ | 7″ | 8″ | 10″ |
| Arbor | 5/87/820 mm | 7/85/820 mm | 7/85/820 mm | 7/85/820 mm | 5/8DKO | 7/85/820 mm | 15/87/8 |
| RPM | 15,300 | 13,200 | 12,200 | 10,000 | 8,600 | 7,500 | 6,100 |
| Material | Performance |
| Ceramic | Good |
| Porcelain | Good |
| Marble | Good |
| Granite | Excellent |
| Hard Granite | Good |
| Glass | Not Recommended |
