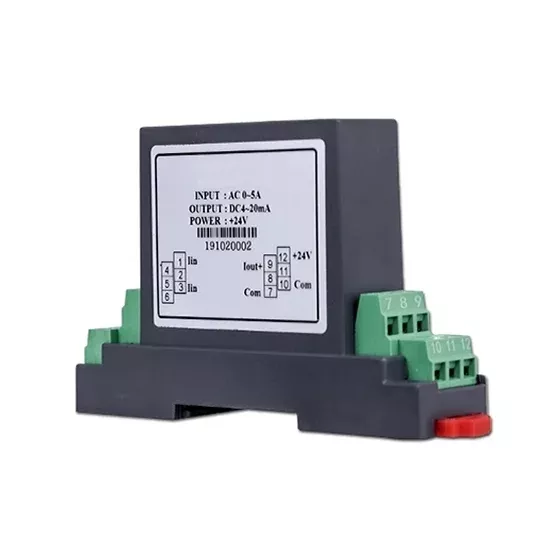

AC current sensor has measuring range of 1mA/5mA/10mA/20mA/50mA/75mA/100mA/0.2A/0.5/1A/2A to 5A.
Specification:
| Model | ATO-WBI122S01 | ATO-WBI124S01 |
| Shipping weight | 1kg | |
| Measuring range of input current * | AC/DC 0-1mA ~ 0-5A (Please make sure the current type is DC or AC before model selection for factory calibration) | |
| Allowed input over-current | 10times of nominal input current, 1s in duration, interval time 300s, repeat five times | |
| Linear measurement range | 0% ~ 120% measuring range | |
| Frequency range | ±DC/20Hz ~ 10kHz | |
| Input impedance | Ri=50mV/Ix (Ix is the current to be measured.) | |
| Output signal * | DC 0-5V, 0-10V | DC 4-20mA, 0-20mA |
| Power supply * | DC 24V, DC 12V | |
| Accuracy | 0.5%F.S. | |
| Load capacity | 5mA | 6V |
| Response time | ≤250ms | |
| Temperature drift | 250*10-6/℃ | 300*10-6/℃ |
| Quiescent current | ≤34mA | ≤34mA (0-20mA output), ≤38mA (4-20mA output) |
| Isolation features | Isolation between input and output, output terminals provides power supply | |
| Isolation voltage | DC 1.5kV, 1min | |
| Work temperature | 0~+50℃ | |
| Storage temperature | -25~+70℃ | |
| Protection class | IP20 | |
| Mean time between failures | ＞50000h | |
| Housing material | Fire-retardant ABS | |
| Wiring | Terminal connection | |
| Installation | DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation |
Current sensor AC/DC 0.1mA/20mA/50mA to 5A dimensional drawing (unit: mm):Current sensor AC/DC 0.1mA to 5A wiring diagram:
- 0-5V/0-10V output:
- 4-20mA/0-20mA output:
Details
Tips: Characteristics of Hall current sensor with 4-20mA/0-20mA output signalThe use of current sensor with 0-5V output signal is limited when the signal needs to be transmitted remotely or the power grid interferes in the environment. It’s because of the disadvantages of poor anti-jamming ability. While the current sensor with current output signal has been widely used for its high anti-interference ability.The output range of the current output Hall current sensor is often 0~20Ma and 4~20Ma, and when the sensor outputs the minimum current and the maximum current, they are respectively represented the minimum and maximum rated output values calibrated by the sensor .For the Hall current sensor with output 0~20Ma, we only need to select the appropriate buck resistance in the circuit design, it is suitable to convert the voltage on the resistor to digital signal through A/D converter directly, circuit debugging and data processing are relatively simple. For the Hall current sensor with output 4~20Ma, the circuit debugging and data processing are more cumbersome. But the current sensor is capable of detecting wheather the current is in the normal range when the sensor is no signal, and to judge whether the circuit is faulty or not, so it is more commonly used.
