About This Product

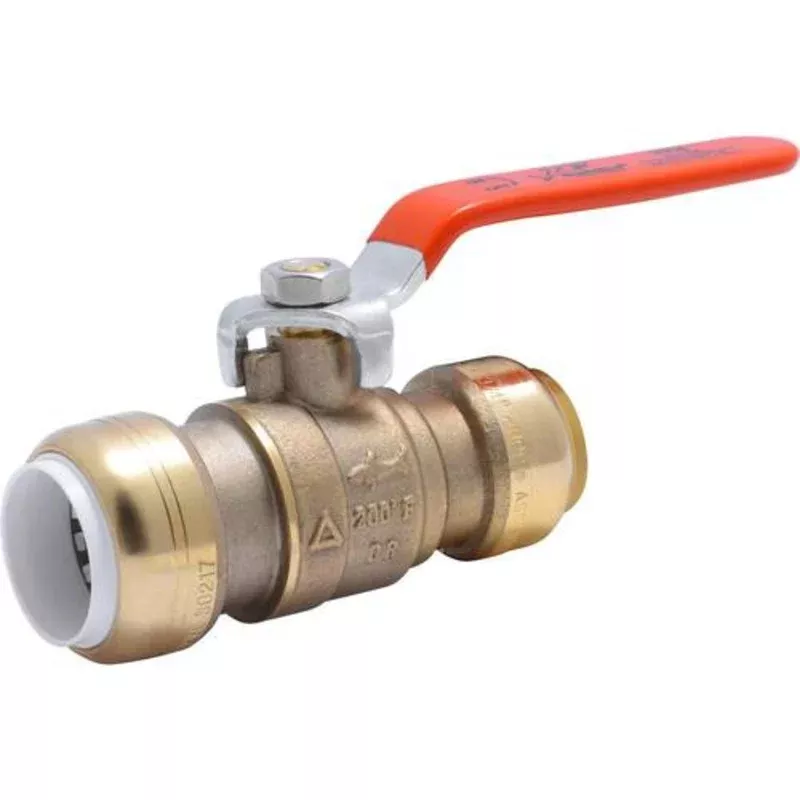

The Push-to-connect ball valve is the simplest method for installing a new or replacement shut-off ball valve. The single lever quarter-turn mechanism enables straightforward operation, and the valve is ideal for applications involving potable water and hydronics where a shut-off is necessary. There is no need for soldering, clamps, unions, glue, or any special tools. Just insert the pipe, and the teeth will grip firmly while a specially designed O-ring compresses to form a watertight seal. Adjustments can be made easily by rotating the valve after it has been installed. Taking off the valve is just as quick with a disconnect tool, allowing for easy changes or reuse of the valve. It features stainless steel gripping teeth for a reliable connection, a chlorine-resistant O-ring for durability, and comes with a 25-year warranty.
Key Features
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE piping
- Push-to-connect fittings are perfect for tight installation spaces
- Rated for 200 degrees Fahrenheit and 200 PSI
- Approved for underground and behind-the-wall installations without access panels (requires wrapping when buried underground)
- Can be installed on both wet and dry lines and can be pressure tested immediately, eliminating the wait for solder joints to cool or solvents to dry
- Constructed from low-lead DZR corrosion-resistant brass
- Code compliant; for further details, refer to Specifications
- 25-Year warranty when used with PEX, copper, CPVC, and PE-RT pipes
- 5-Year warranty when used with SDR-9 HDPE pipe
- Complies with all UPC, IPC, and cUPC standards
- Demount clip allows users to detach the fitting from the pipe for added installation convenience (sold separately)
- Rated for 200F and 200 psi
- 3/4 in. Pipe Insertion Depth = 1-1/8 in.
