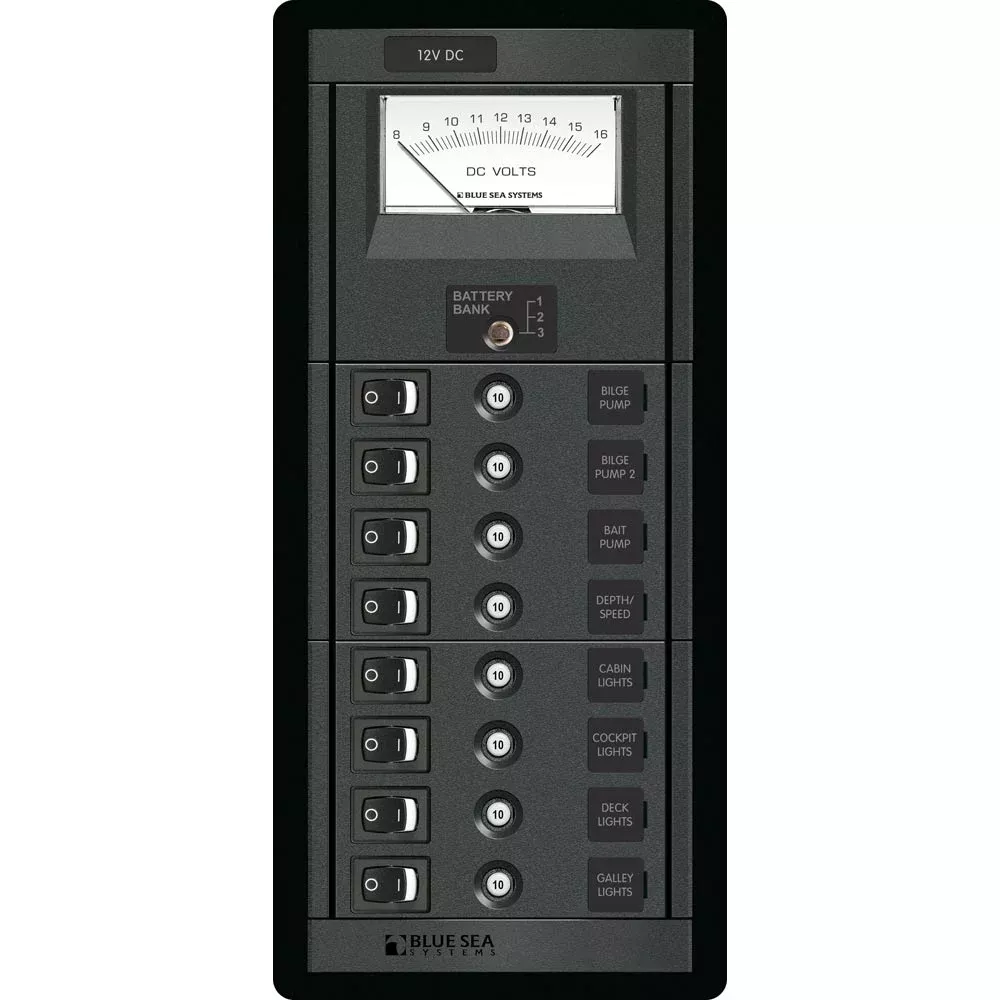

8 Position Switch CLB + Meter Vertical
Features:
- Available with voltmeters and ammeters
- Panels with meters include a toggle switch to monitor voltage on up to three battery banks
- Includes 4205-Square Format Label Set
Specifications:
- Positions:8
- Nominal Voltage:12V DC
- Maximum Amperage*:80A per bus
- Height:10.75″ (273.05mm)
- Width:4.88″ (123.95mm)
- Depth:3.50″ (88.9mm)
- Weight:3.66lb (1.66kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) – 7054 – Push Button Reset Only Quick Connect Circuit Breaker – 10 Amps
(8) – 7480 – Rocker Switch SPST – ON-OFF
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
(1) – 8003 – DC Analog Voltmeter – 8 to 16V DC (Meter)
