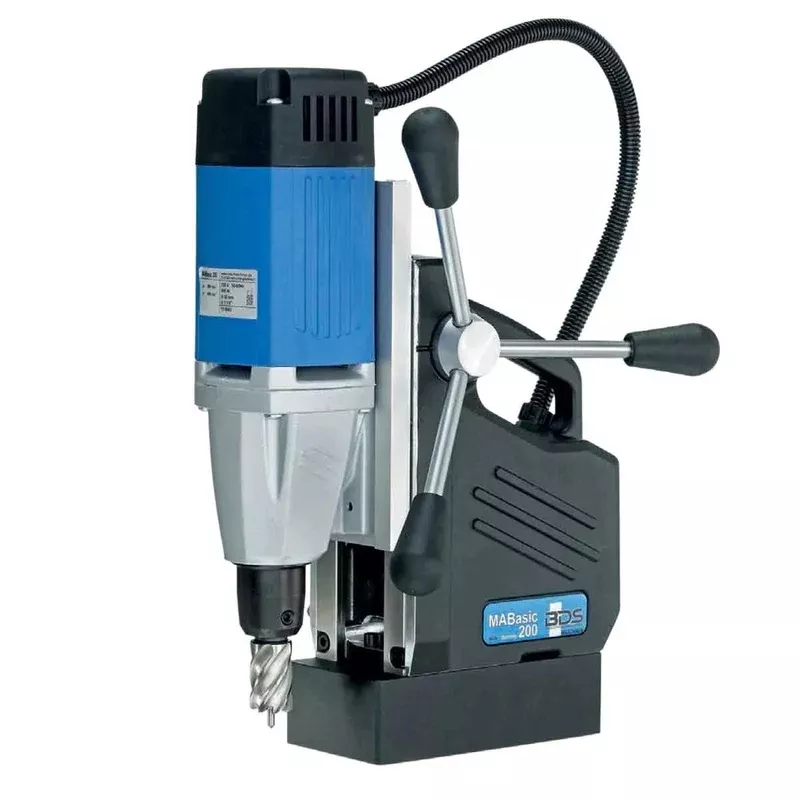

BDS Machine MABasic Series Electric Magnetic Drill
CS Unitec’s MABasic Line of portable magnetic drills are lightweight, powerful machines designed for drilling into structural steel and other metals. Compact and portable, this reliable tool can be moved around easily and is strong enough to take on most metal drilling applications.
Features
- Included geared drill chuck allows you to easily convert to a standard drill press for conventional twist drills
- Equipped with a Electronic Safety Shutoff Sensor
- Internal lubrication system provides smooth drilling
- Drill bits sold separately
What’s Included?
- MABasic Portable Magnetic Drill
- Lubrication Bottle
- 3/4″ Weldon Shank
- 1/2″ Geared Chuck
- Safety Strap
- Carabin Hook
- Allen Keys
- Pilot Pin
- Carrying Case
- Operator’s manual
| MABasic Series Magnetic Drill Specifications | |||
| Model | MABasic 200 | MABasic 400 | MABasic 450 |
| Motor Power | 8.2 Amp / 110 V | 9.5 Amp / 110 V | 10.5 Amp / 110 V |
| Hole Capacity | 1-3/8″ Diameter | 1-5/8″ Diameter | 1-3/4″ Diameter |
| Speed (RPM) | 450 RPM | 430/760 RPM (2 gears) | 250/450 RPM (2 gears) |
| Magnetic Base Size | 6-5/8″ L x 3-1/3″ W | 6-5/8″ L x 3-1/3″ W | 6-5/8″ L x 3-1/3″ W |
| Magnetic Force | 3080 lbs. | 3080 lbs. | 3080 lbs. |
| Arbor Bore | 3/4″ Weldon Shank | 3/4″ Weldon Shank | 3/4″ Weldon Shank |
| Dimensions | 12-1/4″ H x 9″ L x 6-1/2″ W | 14″ H x 9-1/2″ L x 6-1/2″ W | 17″ H x 9-1/2″ L x 6-1/2″ W |
| Weight | 27 lbs | 27 lbs | 29 lbs |
