Product Description
This 2 button Command Center panel is no longer available and we now send the 4 button version. Same panel but will have two extra unused buttons. See pictures

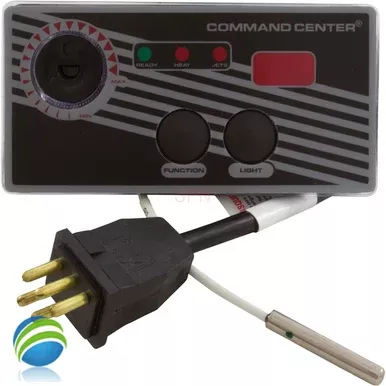

This part is an Analog Topside Control, Air, Tecmark, 115V, 2-Button, Temperature Display with 10′ Cable & Overlay, sometimes called a Command Center.. This type topside can be found on Jacuzzi Whirlpool, Blue Ridge, Gatsby and many other brands with a Pneumatic Style control system.. This control features a 5 round pin plug, the overlay, a digital readout, temp Sensor with Cable and bulb to be placed either in a thermowell or on the pinch plate of the heater..
This style comes in only 115v the 230v has been discontinued in the two button with a Temp Readout version.. This one is 115v and controls (1) Control for a Pump or a a Series of items if you have a stepper type system and a light only..
| Topside Type | Air |
| Topside Complete | Complete Topside |
| Manufacturer | Tecmark |
| Cord Connector Type | Large Molded, 5-Pin |
| Model | Command Center, Digital |
| of Buttons | 2 |
| Topside Shape | Rectangular |
| voltage | 115v |
| Hole Size | 5-5/8″ x 2-1/2″ |
| Capillary Length | 48″ |
| Bulb Size | 5/16″ |
| Cord Length | 10ft |
| Panel Size | 6-1/2″ x 3-1/4″ |
| Overlay Dimension | 6-3/8″ x 3-1/8″ |
