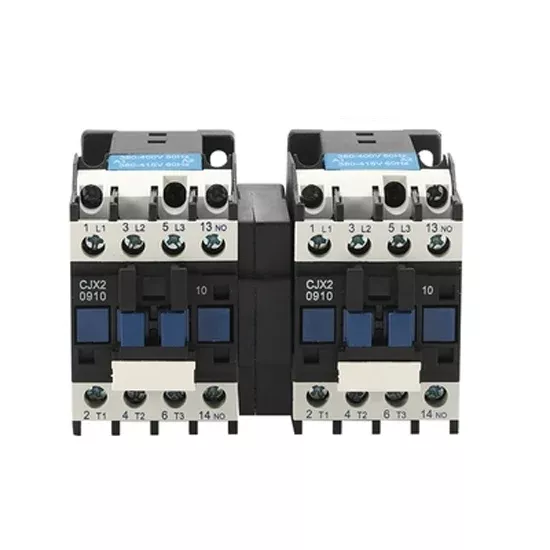

Magnetic AC reversing contactor with a mechanical interlock can save electric energy and eliminate power frequency noise. This magnetic contactor drives the moving contact and the static contact to realize the purpose of connecting or breaking the circuit.
Specification
| Model | ATO-CJX2-09N | ||
| Rated Operational Current | 380V | AC-3 | 9A |
| AC-4 | 3.5A | ||
| 660V | AC-3 | 7A | |
| AC-4 | 1.5A | ||
| Conventional Heating Current | 20A | ||
| Rated Insulation Voltage | 690V | ||
| Power of Controllable 3-phase Squirrel-cage Motor (AC-3) | 220V | 2.2kW | |
| 380V | 4kW | ||
| 660V | 5.5kW | ||
| Operational Frequency | Electric Life | AC-3 | 1200 times/h |
| AC-4 | 300 times/h | ||
| Mechanical Life | 3600 times/h | ||
| Service Life | Electric Life (104 Operations) | AC-3 | 100 |
| AC-4 | 20 | ||
| Mechanical Life (104 Operations) | 1000 | ||
| Matching Fusing Model | RT16-16 | ||
| Average Power Consumption (20℃) @ 50Hz | Pick-up | 76VA | |
| Holding | 9.4VA | ||
| Contact Form (Optional) | 3P (Additional 1NO Auxiliary Contact) or 4P | ||
| Rail Size | 35mm | ||
| Ambient Temperature | -5℃~+40℃ | ||
| Altittude | ≤2000m | ||
| Class of Pollution | Class 3 | ||
| Installation Category | Ⅲ | ||
| Dimensions | 138 x 76 x 82mm | ||
| Weight | 1kg |
Tips: Installation conditions of mechanical interlock AC contactors
- The altitude of the installation site does not exceed 2000m.
- The upper limit of ambient air temperature should not exceed +40℃, and the lower limit should not be lower than -5℃.
- The relative humidity of the air at the installation site does not exceed 50% when the maximum temperature is +40°C.
- The installation incline to the vertical surface does not exceed ±5°.
- The mechanical interlock AC contactor should be installed in a place where there is no significant shaking, impact and vibration.
