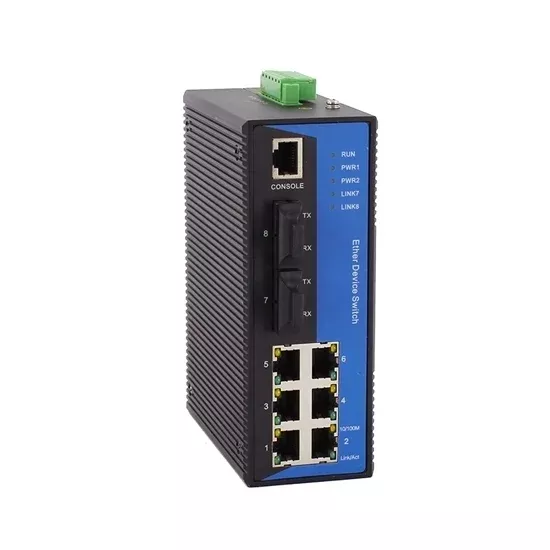

High quality eight ports manaded industrial Ethernet switch, indicator status display, MW-Ring with the recovery time<20ms, static multicast/IGMP Snooping, VLAN/ Qos/ Port link aggregation /port mirroring.
Specification
| Model | ATO-EN6208 |
| Software Performance | |
| Redundancy Protocol | Support MW-Ring and the recovery time<20 ms.Support STP/RSTP |
| Multicast Routing | Support IGMP snooping/ IGMP v1/v2/v3Support GMRPSupport static multicast |
| Management and Maintenance | Support Console and Web management methodsSupport SNMPv1/v2cSupport unified PC software management |
| Technical Specifications | |
| Ethernet Standard | IEEE802.3-10BaseTIEEE802.3u-100BaseTX/100Base-FXIEEE802.3x-Flow ControlIEEE802.3z-1000BaseLXIEEE802.3ab-1000BaseTXIEEE802.1abIEEE802.1D-Spanning Tree ProtocolIEEE802.1w-Rapid Spanning Tree ProtocoIEEE802.1Q -VLAN TaggingIEEE802.1p -Class of ServiceIEEE802.1X-Port Based Network Access Control |
| Switch Properties | |
| Priority Queue | 4 |
| VLAN ID | 1-4096 |
| IGMP Groups | 256 |
| MAC Table | 4k |
| Switch Bandwidth | 1.6Gbps |
| Switch Delay | <5μs |
| Interface | |
| 10/100Base Ports | Port numbers: 8 |
| Connector: 9 fixed F(x) (Single/multi-mode or SC/FC/ST port available) or RJ45 | |
| Baud rate: 100Base-FX (fiber port), 10/100/1000M for adaptive port | |
| Console Port | RS232/RJ45 |
| Terminal Block forPower Input | 5.08mm terminal block |
| Terminal Block for Relay Alarm | 5.08mm terminal block, 1A@24VDC |
| Communication Distance | |
| Twisted-pair | 100m (CAT5/CAT5e cable) |
| Multi-mode Fiber | 10/100Base multi mode: 1310nm 2km |
| Single-mode Fiber | 10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km |
| LED Indicator Lights | |
| Front Panel LED | Port light: LINK/ACT, SPEED |
| Running light: RUN | |
| Power LED: PWR1/PWR2 | |
| Power Requirements | |
| Power Input | DC110~220V (DC110~370V range) or AC100~240V (AC85~264V range)DC12V/DC24V/DC48V available |
| Full-load Consumption | <8W |
| Overload Protection | support |
| Inversed Protection | support |
| Redundancy Protection | support |
| Working Environment | |
| Operating Temperature | -40°C~85°C |
| Storage Temperature | -40°C~85°C |
| Ambient Humidity | 5%~95% (non-condensing) |
| Physical Characteristics | |
| Shell | IP40 protection, aluminum alloy shell |
| Installation | 35mm din rail-mounted installation |
| Dimension | 54mm x 144mm x 110mm |
| Weight | 600g |
| Industry Standard | |
| EMC | EN61000-4-2(ESD), Level 4EN61000-4-3(RS), Level 4EN61000-4-4(EFT), Level 4EN61000-4-5(Surge), Level 4EN61000-4-6(CS), Level 4EN61000-4-8,Level 5 |
| Impact | IEC60068–2-27 |
| Falling | IEC60068-2-32 |
| Shock | IEC60068-2-6 |
Dimensional Drawing (mm)
Tips: How to choose a right industrial Ethernet switch?The main reference factor for selecting an Ethernet switch:1. Backplane bandwidth, Layer 2/3 switching throughput.2. Number and type of ports.3. Qos, 802.1q priority control, 802.1X, 802.3X support.4. Exchange cache, main memory, forwarding delay and other parameters.5. Line-speed forwarding, routing table size, access control list size, support for routing protocols, support for multicast protocols, and scalability are all worth considering. They should be investigated according to actual conditions.
