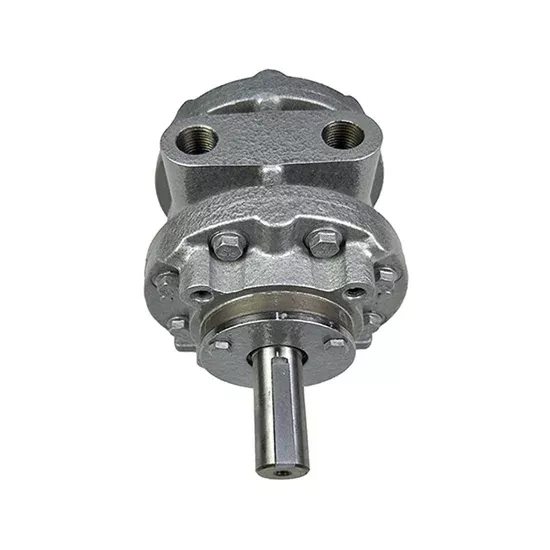

3900 watt pneumatic vane air motor offers three installation methods to choose, maximum torque 300 rpm rotate speed, it is widely used in rock drilling of mine, drilling, ship, metallurgy, chemical engineering, and papermaking etc.
Specification
| Model | Operation Data | Maximum Torque | Weight | Installation Method | Color | Certification | Warranty | ||||||||
| Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | ||||||||||
| hp | kW | Nm | lb.in | rpm | m³/ h | cfm | rpm | Nm | lb.in | kg | |||||
| ATO-HX8AM-H | 5.25 | 3.9 | 14.4 | 132 | 2500 | 293 | 175 | 300 | 21 | 185 | 10.7 | Foot Mounting | Gray | CE | 12 months |
| ATO-HX8AM-V | 10.4 | Face Mounting | |||||||||||||
| ATO-HX8AM-ARV-70 | 13.2 | IEC Flange |
Dimension (unit=inch/mm)
Details
Tips: The Characteristics of Pneumatic Vane Air Motor.
The figure below is the characteristic curve of a vane air motor made under a certain working pressure. It can be seen from the figure that the air motor has the characteristics of soft characteristics. When the applied torque T is equal to zero, it is idling. At this time, the speed reaches the maximum value, and the power output of the air motor is equal to zero; when the applied torque is equal to the maximum torque of the air motor, the motor stops rotating, and the power is also equal to zero at this time; When the applied torque is equal to half of the maximum torque. The rotation speed of the motor is also 1/2 of the maximum rotation speed. At this time, the output power P of the motor is the largest, which is indicated by.
