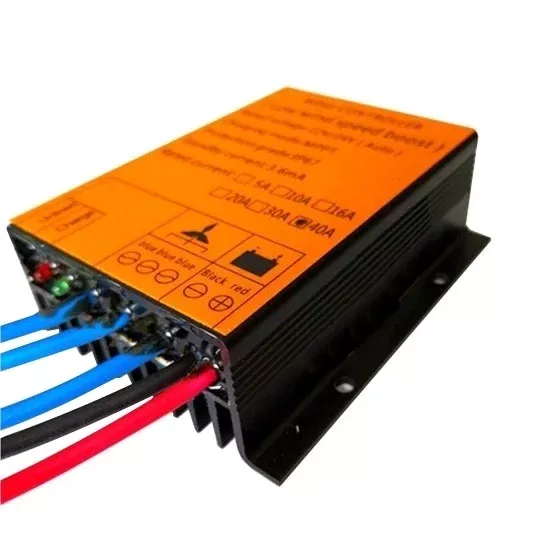

Wind turbine mppt charge controller for sale, voltage 12V/24V (auto), high protection, IP67, standby current 3.6mA, wind power charge controller is safe and reliable, and can effectively prevent the runaway when the wind speed is too fast, and the danger to the wind generator when strong wind occurs.
Note:
The controller needs to be selected according to the power of the wind turbine and the battery voltage.
Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.
Specification
| Model | ATO-WTCMPPT-500 |
| Rated Voltage | 12V/24V (Automatic recognition voltage) ATO recommends the same generator voltage as the battery voltage |
| Wind Generator Rated Power | 500W |
| Protection | Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking |
| Function | MPPT Charging |
| Unloading Way | PWM Electrodeless and noiseless unloading |
| Working Temperature | -20~+60°C 35~85%RH |
| Dimension | 100*80*15mm |
| Net Weight | 0.4kg |
Features1. High quality technical components ensure the stability and reliability of the wind turbine controller.2. Waterproof and dustproof, the controller can be used in various outdoor environments.3. Voltage/current control charging ensures that the battery is always charged.4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.
Wind Power System Connection Diagram
