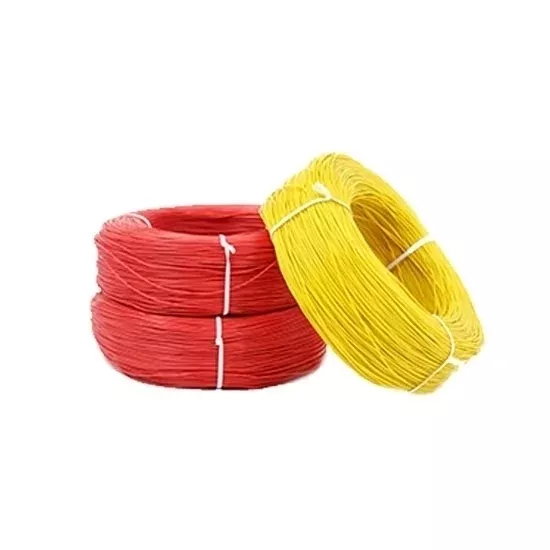

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.
Specification
| Model | ATO-UL1007-26 | |
| UL Style | 1007 | |
| Size | 26 AWG | |
| Rated Voltage | 300V | |
| Color (Optional) | White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple | |
| Rated Temperature | 80 ℃ | |
| Conductor | Tinned/ Bare Copper | |
| Conductor Type | Stranded | |
| Conductor Size (±0.005） | NO. 7/ 0.16mm | |
| Conductor Resistance 20℃ | 150 Ω/km | |
| Conductor Diameter | 0.48mm | |
| Insulation | PVC | |
| Insulation Thickness | Nom. | 0.40mm |
| Min. | 0.33mm | |
| Overall Diameter | Average | 1.28mm |
| Tolerance | ±0.1mm | |
| Package | 2000 ft/roll | |
| Weight | 4kg |
Details
Tips: Difference between UL1007 wire and UL1571 wire
- Different pressure and temperatureThe rated voltage of UL1007 wire is 300V, the rated temperature is 80℃. The rated voltage of UL1571 wire is 600V, the rated temperature is 105℃.
- Different insulation thicknessUL1571 wire is thicker than UL1007 wire.
- Different wire diameterUL1007 wire is thinner than UL1571 wire in outer diameter.
