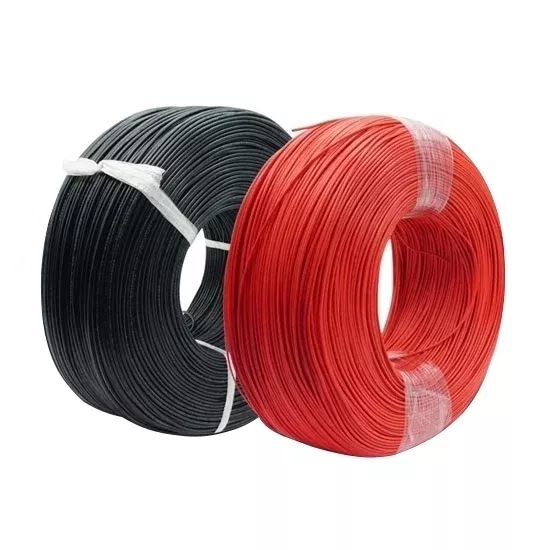

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.
Specification
| Model | ATO-UL1015-22 | |
| UL Style | 1015 | |
| Size | 22 AWG | |
| Rated Voltage | 600V | |
| Color (Optional) | White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple | |
| Rated Temperature | 105 ℃ | |
| Conductor | Tinned/ Bare Copper | |
| Conductor Type | Stranded | |
| Conductor Size (±0.005） | NO. 17/ 0.16mm | |
| Conductor Resistance 20℃ | 59.40 Ω/km | |
| Conductor Diameter | 0.76mm | |
| Insulation | PVC | |
| Insulation Thickness | Nom. | 0.80mm |
| Min. | 0.69mm | |
| Overall Diameter | Average | 2.36mm |
| Tolerance | ±0.10mm | |
| Package | 2000 ft/roll | |
| Weight | 6kg |
