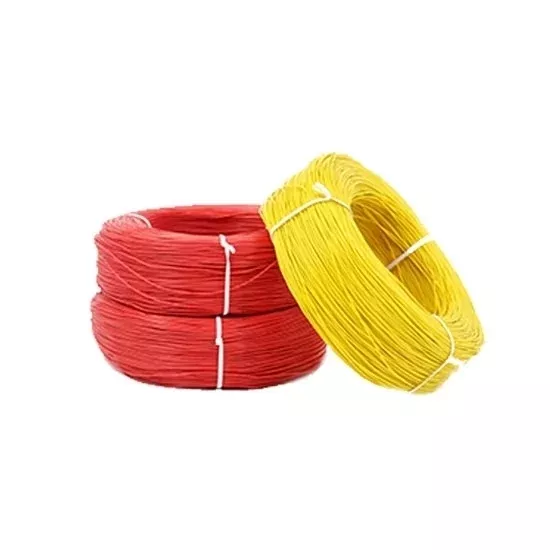

ATO hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.
Specification
| Model | ATO-UL1007-22 | |
| UL Style | 1007 | |
| Size | 22 AWG | |
| Rated Voltage | 300V | |
| Color (Optional) | White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple | |
| Rated Temperature | 80 ℃ | |
| Conductor | Tinned/ Bare Copper | |
| Conductor Type | Stranded | |
| Conductor Size (±0.005） | NO. 7/ 0.254mm | |
| Conductor Resistance 20℃ | 59.40 Ω/km | |
| Conductor Diameter | 0.76mm | |
| Insulation | PVC | |
| Insulation Thickness | Nom. | 0.40mm |
| Min. | 0.33mm | |
| Overall Diameter | Average | 1.56mm |
| Tolerance | ±0.1mm | |
| Package | 2000 ft/roll | |
| Weight | 6kg |
Details
Tips: What are the uses of UL1007 wires?
UL1007 wires are used in automotive industry, mechanical equipment, computers, household appliances, electronic and electrical equipment internal wiring.
